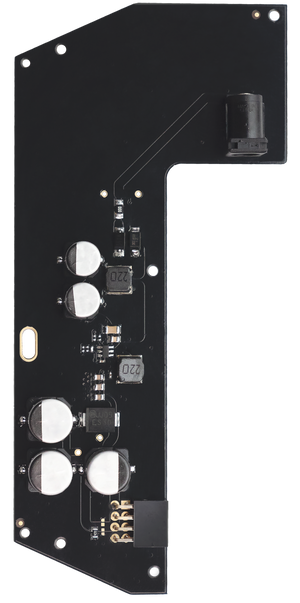

Ajax 12–24V PSU (Hub / Hub Plus / ReX)

Sale price 66,25 EUR
Installation: Yes

12–24V PSU is an alternative power supply module for connecting Hub or ReX to low-voltage sources (8–32 V⎓). It replaces the standard 110/230 V~ PSU and is ideal for warehouses, trailers, vans, and yachts without stable mains power.

Installation takes up to 10 minutes and requires only a PH1 screwdriver. A terminal adapter is included.



Specifications

Compatibility

  • Hub

  • Hub Plus

  • ReX

Input

  • Voltage: 8–32 V⎓

  • Current: up to 1 A

  • Startup: 8 V⎓ ± 2.5%

  • Shutdown: 7–7.5 V⎓ (depending on load)

Output

  • Voltage: 4.65 V⎓ ± 5%

  • Current: up to 1.5 A

Connectors

  • Socket: 6.5 × 2 mm (female)

  • Plug: 5.5 × 2.1 mm (male)

Installation

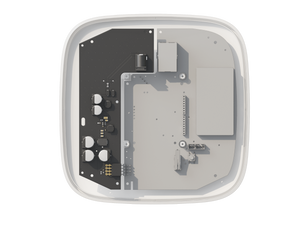

  • Inside Hub or ReX housing

Enclosure

  • Dimensions: 138 × 64 × 13 mm

  • Weight: 30 g

Operating conditions

  • Temperature: −10°C … +40°C

  • Humidity: up to 75%

Package contents

  • 12–24V PSU (Hub / Hub Plus / ReX)

  • Terminal adapter

  • Quick start guide
