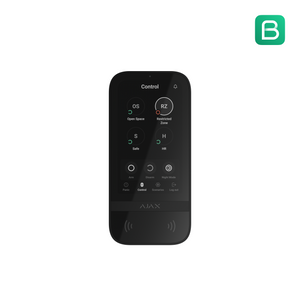

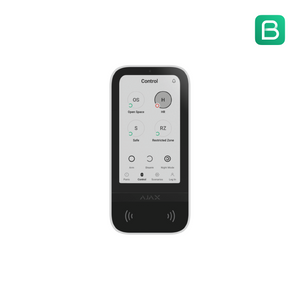

Ajax KeyPad TouchScreen Jeweller

Sale price 432,00 EUR
Color: Black
Installation: Yes

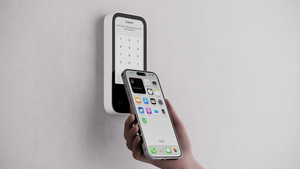

Wireless keypad with a 5″ IPS touch display and contactless authorization. Supports codes, Pass cards, Tag key fobs, and smartphone (BLE). Control arming, night mode, groups, and up to 6 automation devices/scenes from a dedicated tab. Auto-brightness, light/dark themes, and audible alerts for alarms and entry/exit delays.



Specifications

  • Protocol: Jeweller (two-way, encrypted, frequency hopping), range up to 1700 m

  • Additional radio: Wings (lists & data synchronization)

  • Frequencies (region-dependent): ~868 MHz band

  • Display: 5″ IPS, 480×854 px, capacitive touch; light/dark themes

  • Access methods: codes, Pass/Tag (DESFire® EV1/EV2, AES-128), smartphone (BLE 4.2+)

  • Codes: up to 200 personal, up to 99 visitor codes, keypad code, duress code

  • Panic tab: panic / fire / medical

  • Security: device authentication, tamper, lockout after failed attempts, anti-spoofing

  • Power: 6 × AA (up to 1.5 years), external 12 V⎓ (10.5–14 V⎓); batteries as backup

  • Typical consumption: 46 μA idle (at 12 V)

  • Environment: –10…+40 °C, up to 75% RH

  • Enclosure: 172 × 82 × 26 mm, 327 g; colors: black/white

  • Installation: indoor only, SmartBracket, auto-wake on approach

Package contents

  • KeyPad TouchScreen Jeweller

  • SmartBracket mounting panel (with locking screw)

  • 6 × AA batteries (pre-installed)

  • Mounting kit

  • Quick start guide
