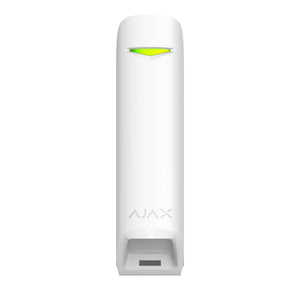

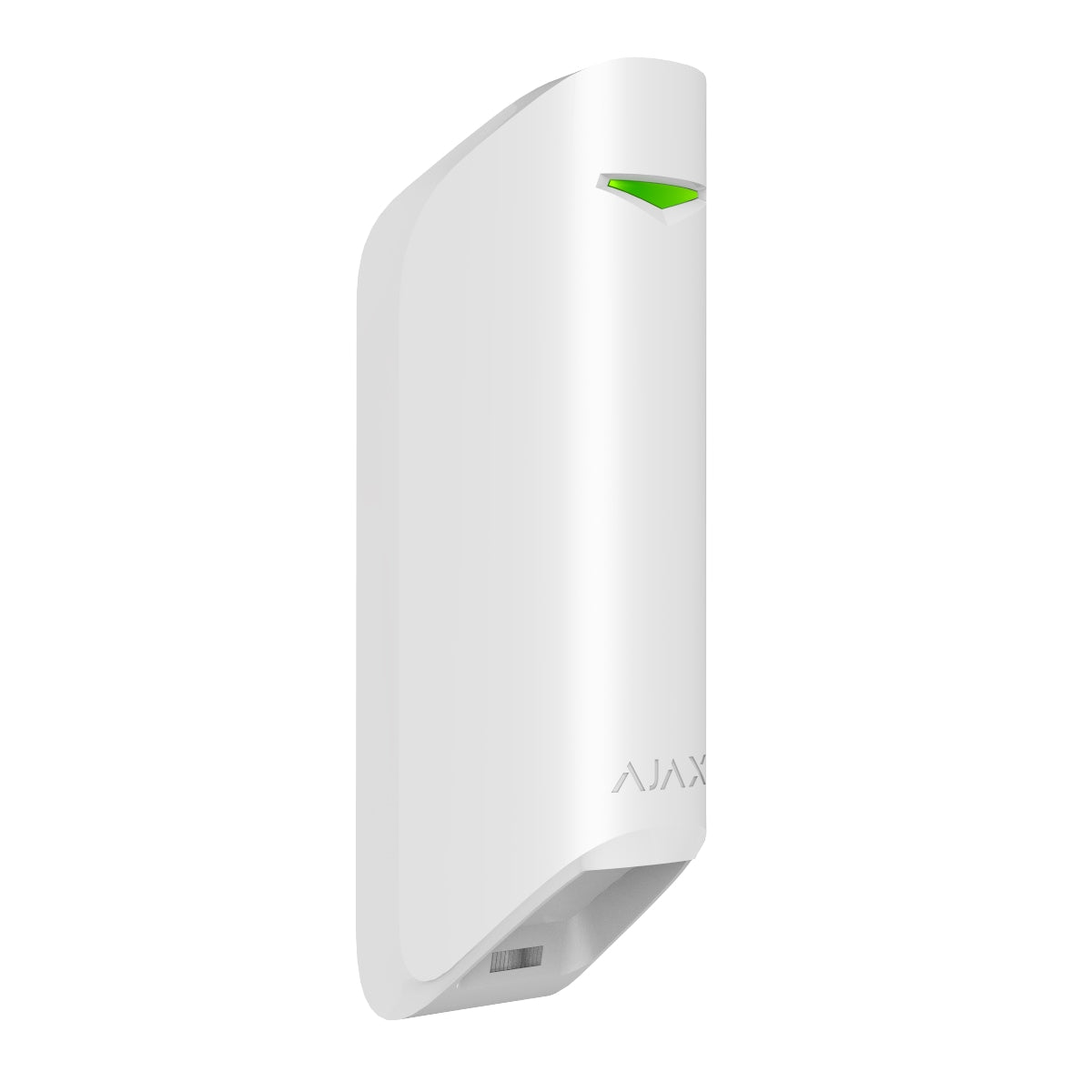

Ajax MotionProtect Curtain Jeweller

Sale price 126,88 EUR

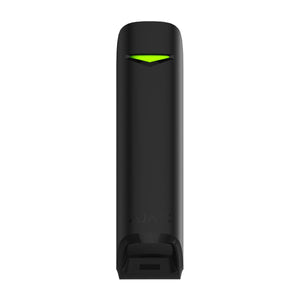

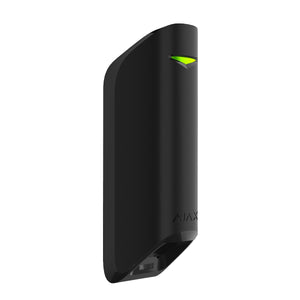

Color: Black
Installation: Yes

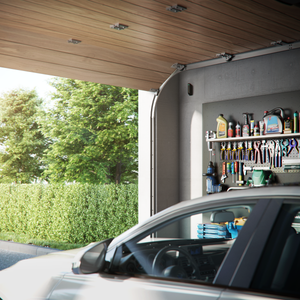

MotionProtect Curtain is a wireless indoor motion detector with a narrow “curtain” detection zone. Using two PIR sensors and correlation signal processing, it reliably distinguishes real movement from interference, making it ideal for protecting windows, doors, and hallways.



Specifications

  • Classification: photoelectric wireless security sensor

  • Detection range: adjustable, 6–15 m

  • Viewing angles: horizontal 6°, vertical 90°

  • Reaction time: 0.3–2 ms

  • Sensitivity: adjustable, 3 levels

  • Recommended installation height: 2.4 m

  • Sensing element: 2 × PIR sensors

  • Power supply: CR123A battery, 3 V

  • Battery life: up to 3 years

  • Radio protocol: Jeweller, communication up to 1700 m (open area)

  • Security: AES encryption, frequency hopping, anti-tamper, jamming detection

  • Extra features: temperature sensor, remote setup and testing

  • Operating temperature: −10…+40 °C

  • Humidity: up to 95%

  • Protection class: IP54

  • Dimensions: 134 × 44 × 34 mm

  • Weight: 118 g

Package contents

  • MotionProtect Curtain detector

  • SmartBracket mounting panel

  • CR123A battery (pre-installed)

  • Bracket

  • Installation kit

  • User manual
